Bestar Assembly Videos & Troubleshooting Guides

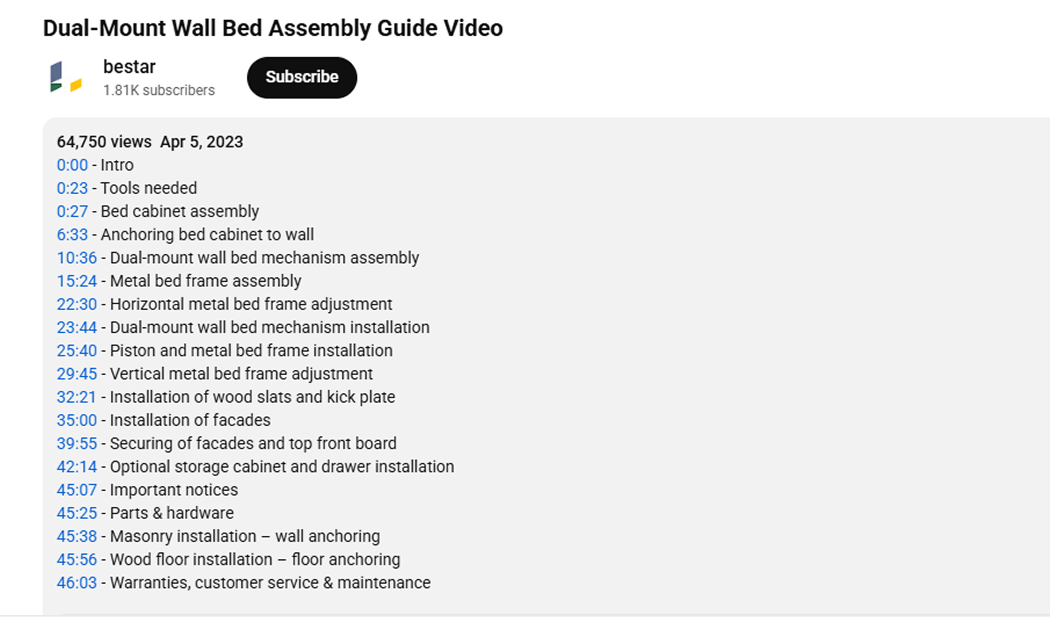

YouTube video instruction of assembling wall beds with the dual-mount wall bed. This video link contains all the steps of the instruction manual. Below is the sequence of steps and time stamp within the video. Find individual articles with the same name within the article listing of this section.

View Dual-Mount Assembly Video  Individual videos of each step are also available as chapters (see other videos in the knowledge base).

YouTube video instruction wall bed mechanism installation of the dual-mount wall bed. This includes wall anchoring and floor anchoring instruction, into drywall, wooden floor, and masonry wall or floor. This video link contains steps 15 of the instruction manual.

Wall Bed Mechanism Installation - Drywall
Wall Anchoring - Masonry or Concrete
Wooden Floor Anchoring

YouTube video instruction of installation of optional storage cabinets and drawers. This step is not found in the wall bed instruction guide, but within the storage cabinet and drawer guides.

Storage Cabinet and Drawer Installation

For the full video please move the navigation bar to the beginning of the YouTube link.

Introduction

Installing the new improved already extended pistons on your Bestar wall bed can enhance its functionality and longevity. This guide provides a comprehensive step-by-step process to install these pistons safely and effectively.

Tools Required

Screwdrivers (Phillips and flathead)
Adjustable wrench
Allen wrenches
Pliers
Rubber mallet
Safety goggles
Work gloves

Safety Precautions

Read the Bestar Manual: Always refer to the Bestar instructions before starting.
Clear the Area: Ensure the area around the wall bed is clear of obstacles.
Use Proper Tools: Use the recommended tools to avoid damage.
Wear Safety Gear: Use safety goggles and work gloves to protect yourself from potential injuries.
Have a Helper: Bestar wall beds can be heavy. It’s advisable to have someone assist you.

Installation Guide

Preparation

Download the Manual: Click here to download the detailed manual.
Watch the Assembly Video: For visual guidance, you can watch a short assembly video here.

Step-by-Step Instructions

Remove the MoldingIf your model has molding, remove the molding carefully to access the bed frame.Remove the molding full-face to expose the bindings facades.
Remove the Bindings FacadesRemove the last lath and the 8th lath from the bottom to access the internal components.
Open the BedOpen the bed and place an object to keep it in a semi-closed position. This ensures stability during the installation process.
Remove the FacadesCarefully remove the facades to expose the internal mechanisms.
Open the LegFully open the bed and extend the leg for easier access to the pistons.
Remove the Toe KickRemove the toe kick to access the screws and components beneath it.
Uninstall the LegRemove the leg from its position to allow more room for piston installation.
Remove the Stop Panel ScrewsUnscrew the stop panel to gain full access to the pistons.
Remove the Stop PanelTake off the stop panel to expose the moveable parts of the bed.
Move the Moveable PartMove the moveable part towards the interior of the bed frame.
Remove the Upper Cylinder BoltRemove the bolt securing the upper part of the cylinder.
Lower the Moveable PartLower the moveable part to the ground to relieve tension on the cylinder.
Remove the Lower Cylinder BoltRemove the bolt securing the lower part of the cylinder.
Change the CylinderReplace the old cylinder with the new improved already extended piston.
Reinstall Cylinder BoltsSecure the new piston by reinstalling the bolts on the upper and lower parts of the cylinder.

Reassembly

Reassemble the BedFollow the steps in reverse order to reassemble the bed. Ensure all components are securely fastened and properly aligned.
Reinstall the Stop PanelReattach the stop panel and secure it with screws.
Reinstall the LegPut the leg back in its original position and secure it.
Replace the Toe KickReinstall the toe kick.
Close the BedCarefully close the bed and ensure it functions properly with the new pistons.
Reattach the FacadesReattach the facades to the bed frame.
Replace the Bindings FacadesReinstall the bindings facades and laths.
Reinstall the MoldingReattach the molding to complete the installation.

Conclusion

Installing the new improved already extended pistons on your Bestar wall bed requires careful attention to detail and adherence to safety guidelines. By following this step-by-step guide, you can enhance the functionality of your wall bed. If you encounter any difficulties or uncertainties, consult the Bestar manual or seek professional assistance.

Keep this information for future reference.

40184-changement-cylindre.pdf

Introduction

Disassembling a Bestar wall bed can be a detailed process, requiring careful attention to the specific design and components of Bestar products. This guide provides a comprehensive step-by-step process to safely and effectively disassemble a Bestar wall bed.

Tools Required

Screwdrivers (Phillips and flathead)
Adjustable wrench
Safety goggles
Work gloves

Safety Precautions

1. Read the Bestar Manual: Always refer to the Bestar instructions before starting.
2. Clear the Area: Ensure the area around the wall bed is clear of obstacles.
3. Use Proper Tools: Use the recommended tools to avoid damage.
4. Wear Safety Gear: Use safety goggles and work gloves to protect yourself from potential injuries.
5. Have a Helper: Bestar wall beds can be heavy. It’s advisable to have someone assist you.
6. Important Warnings:

Professional Assistance: Only a professional or qualified person should proceed with the disassembly, reinstallation, and any adjustments.
Bed Stability: The bed should remain anchored to the wall during the initial steps of disassembly to prevent tipping and injury.

BESTAR is released from any responsibility and will void the warranty if the disassembly is not performed according to the instructions in this manual. BESTAR and its distributors shall not be liable for any damages
arising out of or in connection with improper anchoring of the bed or
non-compliance with the anchoring procedure.

Qualified Person: Ensure the disassembly is done by someone with the necessary skills and knowledge, particularly understanding the wall anchors used during the original installation. Follow all applicable regulations in your province, state, or country.

Step-by-Step Disassembly Instructions

1. Remove the Mattress

By removing the mattress, the bed frame will rise quickly. Have a helper hold the frame down while removing the mattress.

2. Remove the Four Slats

Remove the four slats at the middle and foot end of the bed to gain access to the front facades/door panels.

3. Unscrew the Facades

Unscrew the facades using screws VR-215.

4. Rotate the Leg

Rotate the leg towards the interior.

5. Keep the Bed in a Semi-Closed Position

Use an object of about 2 inches (50 mm) thick to keep the bed in a semi-closed position, then lift and pull to remove the facades.

6. Remove the Stop Molding

Take off the stop molding by removing the 5 screws on top.

7. Let the Bed Frame Sink Back

Let the bed frame sink back into the cabinet and remove the cylinders.
Unscrew the fastener and remove the end of the cylinder from the “L” bracket.

8. Remove the Bearing Supports

Unscrew and remove the bearing supports KI-993-P.

9. Lift the Metal Bed Frame

Lift the metal bed frame from the brackets and slide the frame forward.

10. Unscrew the Bed from the Wall

Now you can unscrew the bed from the wall and continue the disassembly.

Conclusion

Disassembling a Bestar wall bed requires following the specific instructions provided by Bestar. By adhering to this step-by-step guide, you can safely and effectively disassemble your Bestar wall bed for moving, storage, or disposal. If you encounter any difficulties or uncertainties, consult the Bestar manual or seek professional assistance.

Keep this information for future reference.
